This document describes the features and benefits of the 2010v1 ® linear light engine, as well as its typical applications in lighting. The product is characterized by high reliability, multiple configurable options, and flexible optic options.

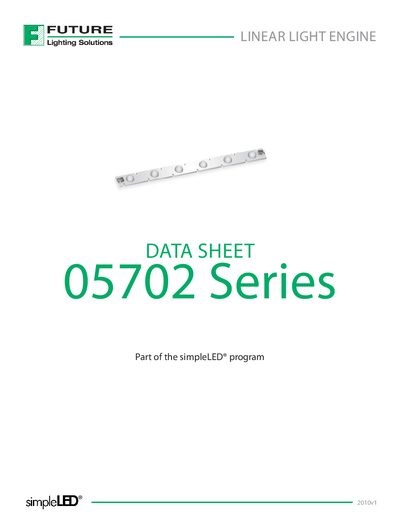

The 05702 Series Linear Light Engine is a modular LED light source built from six high‑power LUXEON Rebel LEDs. It offers flexible optic and connector options, a wide operational temperature range, and a 3‑year manufacturer warranty. Typical applications include under‑cabinet, cove, accent, display, and street lighting.
The datasheet details mechanical dimensions (25 × 300 mm), electrical parameters (forward voltage 15.3‑24.0 V at 350 mA, power consumption 54‑84 W), thermal resistance (Rth = 21 K/W), and environmental limits (storage –40 °C to +70 °C, PCB –20 °C to +80 °C). It also includes thermal management guidance, connector specifications (Tyco CT), and part‑numbering for accessories and interconnection cables.
| Size | 25 x 300 mm |
|---|---|
| Source Type | LUXEON Rebel |
| Connector | Tyco CT (2-292173-2) |
| Thermal Resistance | Rth = 21 K/W |
| Forward Voltage (V) @350 mA | 15.3, 18.0, 24.0 |
| Power Consumption @350 mA (W) | 54, 63, 84 |
| Storage Temperature (°C) | -40 to +70 |
| PCB Temperature (°C) | -20 to +80 |
It comes with a 3‑year manufacturer warranty provided by Rena Electronica BV.
The light engine uses LUXEON Rebel high‑power LEDs.
The device uses a Tyco CT connector (part number 2-292173-2).
