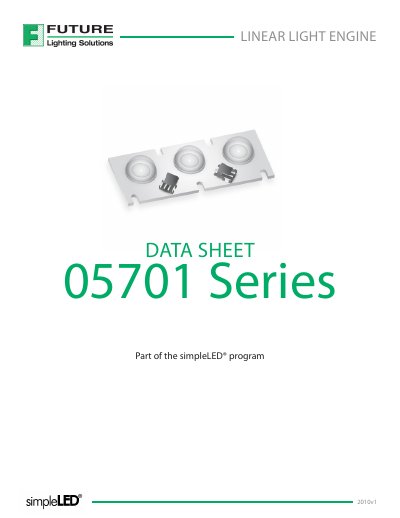

This file is the data sheet of the 05701 series light engine, which introduces the characteristics of the light engine, including 3-year manufacturer warranty, high-reliability LED sources, rugged construction, wide operating temperature range, multiple configurable options, flexible optical options, wide range drive current, multiple white CCts available, short lead time, CE certified, and UL recognized
The Linear Light Engine 05701 Series is a high‑power LED module offered under the simpleleD® program. It is designed for cabinet, accent, and display lighting applications, offering multiple configurable LED, optic, and connector options.
Key features include a three‑LED configuration, wide operational temperature range, flexible drive current, and a three‑year manufacturer warranty. Thermal management requires a heat sink with appropriate thermal resistance, and the module must be mounted using all screw holes for optimal heat transfer.
| Size | 25 x 150 mm |
|---|---|
| Source type | LUXeOn® rebel |
| Connector type | Tyco C t (2-292173-2) |
| Thermal resistance (junction‑to‑PCB) | 21 K/W |
| Forward Voltage (V) @ 350 mA, 25 °C | 7.6 – 12.0 V |
| Power Consumption @ 350 mA | 2.7 – 4.2 W |
| Storage Temperature | -40 °C to +70 °C |
| PCB Operating Temperature | -20 °C to +80 °C |
A three‑year manufacturer warranty is offered for the 05701 Series light engine.
The heat sink should have a thermal resistance of 6 K/W to keep the junction temperature within limits.
