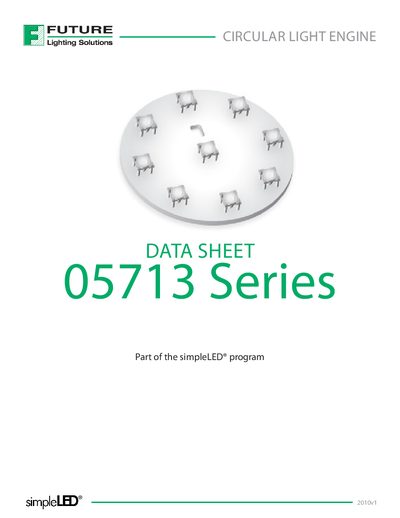

This is a data sheet of the 05713 series circular light engine, the main features include: high-reliability LED sources, rugged construction, wide operating temperature range, multiple configurable options, flexible optical options, wide range drive current, multiple white CCTs available, short lead time, CE certified, UL recognized
The 05713 Series Circular Light Engine is a modular LED light source consisting of nine high‑power LUXEON Rebel LEDs. It is part of the simpleLED program, allowing customers to select LED, optic, and connector options to suit applications such as under‑cabinet, cove, accent, and display lighting.
Key specifications include a 75 mm diameter PCB, Tyco miniCT (2106091‑1) connector, thermal resistance of 21 K/W, forward voltage of 22.9‑35.9 V at 350 mA, and power consumption of 8‑12.6 W. The device operates from –40 °C to +70 °C storage temperature and –20 °C to +80 °C PCB temperature, and it requires a heat sink with appropriate thermal resistance to stay within the LED junction temperature limits.
| Diameter | 75 mm |
|---|---|
| Source Type | LUXEON Rebel |
| Connector | Tyco miniCT (2106091-1) |
| Forward Voltage (350 mA, 25 °C) | 22.9‑35.9 V |
| Power Consumption (350 mA) | 8‑12.6 W |
| Storage Temperature | -40 °C to +70 °C |
| PCB Temperature | -20 °C to +80 °C |
| Warranty | 3 Year Manufacturer (Rena) Warranty |
The 05713 series light engine contains nine high‑power LUXEON Rebel LEDs.
It uses a Tyco miniCT connector, part number 2106091‑1.
A heat sink with a thermal resistance of about 2.3 K/W is needed to keep the PCB temperature within limits.
Typical applications include under‑cabinet lighting, cove lighting, accent lighting, display case lighting, and general display lighting.
