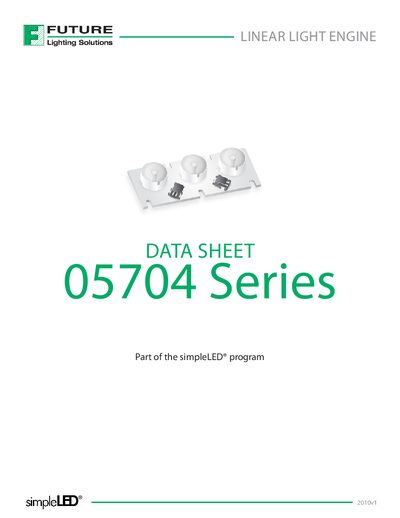

This document is the data sheet of 05704 Series linear light engine. The light engine series consists of 3 high power LUXEON Rebel LEDs. It is engineered to provide customers with the flexibility to select the optimal light source for the applications. The features of the light engine series include: high-reliability LED Sources, rugged Construction, Wide Operational temperature range, Multiple Configurable Options, Flexible Optic Options, Wide range Drive Current, Multiple White CCt's available, Short lead time, CE certified, UL recognized.
The 05704 Series Linear Light Engine consists of three high‑power LUXEON Rebel LEDs and offers configurable optics, connectors, and drive currents. Features include a 3‑year manufacturer (Rena) warranty, rugged construction, wide operational temperature range, and CE/UL certifications, making it suitable for under‑cabinet, cove, accent, and display lighting applications.
The datasheet details mechanical dimensions (30 × 75 mm PCB, Tyco CT connector), electrical parameters (forward voltage 7.6‑12.0 V at 350 mA, power consumption 27‑4.2 W), environmental limits (storage –40 °C to +70 °C, PCB –20 °C to +80 °C), and thermal management requirements (Rth = 21 K/W, heat‑sink mounting with M3 screws and thermal interface material). Accessories such as interconnection cables and optics are also listed, along with part‑numbering and ordering information.
| LED source type | LUXEON Rebel |
|---|---|
| PCB size | 30 x 75 mm |
| Connector type | Tyco CT (2-292173-2) |
| Thermal resistance | Rth = 21 K/W |
| Forward voltage (V) @350 mA | 7.6 – 12.0 V |
| Power consumption @350 mA | 27 W, 3.2 W, 4.2 W |
| Storage temperature range | -40 °C to +70 °C |
| PCB temperature range | -20 °C to +80 °C |
It comes with a 3‑year manufacturer (Rena) warranty.
The series uses LUXEON Rebel LEDs.
Typical applications include under‑cabinet lighting, cove lighting, accent lighting, display case lighting, and display lighting.
