The Fluke 8808A is a 5.5 digit multimeter suitable for manufacturing test, R&D, development, and service applications. It offers a wide variety of measurement functions, including volts, ohms, amps, and frequency, with superior accuracy and resolution. It includes two low impedance low current ranges for measuring sensitive leakage currents. It also features setup keys for fast access to repetitive measurements and a limit compare mode to eliminate production mistakes. Additionally, it allows for 4-wire measurements with only two leads. Optional test lead accessories are available for 4-wire connections in tight spaces or on surfaces.

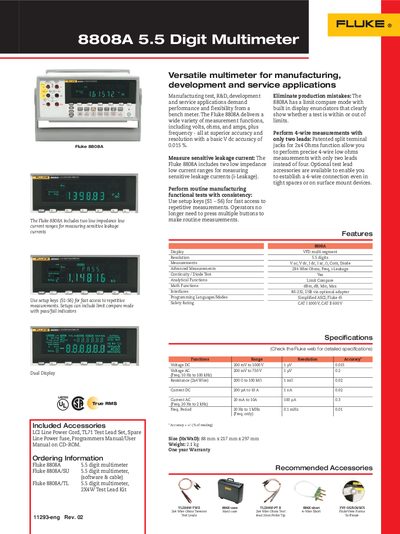

The handbook describes the Fluke 8808A’s versatile measurement functions, including volts, ohms, amps, frequency, and low‑impedance leakage current ranges. It highlights fast‑access setup keys (S1‑S6), limit‑compare mode with pass/fail indicators, and a patented split‑terminal jack that enables 4‑wire low‑ohms measurements with only two leads.
Included accessories such as a line power cord, test lead set, spare fuse, and a CD‑ROM manual are listed, along with optional accessories for 4‑wire testing. Safety ratings (CAT I 1000 V, CAT II 600 V) and interface options (RS‑232, USB via optional adapter) are also covered.
| Voltage DC range | 200 mV to 1000 V |
|---|---|
| Voltage AC range | 200 mV to 750 V |
| Resistance (2×4 Wire) range | 200 Ω to 100 MΩ |
| Current DC range | 200 µA to 10 A |
| Current AC range | 20 µA to 10 A |
| Frequency range | 20 Hz to 1 MHz |
| Safety rating | CAT I 1000 V, CAT II 600 V |
It includes two low‑impedance low‑current ranges for measuring sensitive leakage currents.
Use the setup keys (S1‑S6) for fast access to repetitive measurements, with optional limit‑compare mode showing pass/fail indicators.
The package includes a line power cord, TL71 test lead set, spare line power fuse, and a CD‑ROM containing the programmer’s manual and user manual.
It is rated CAT I 1000 V and CAT II 600 V.
