The document describes the output modes, specifications, and characteristics of a multi-channel power supply. It features adjustable voltage and current outputs, tracking voltage, and parallel operation. Additionally, the document provides performance specifications such as line regulation, load regulation, ripple, and noise.

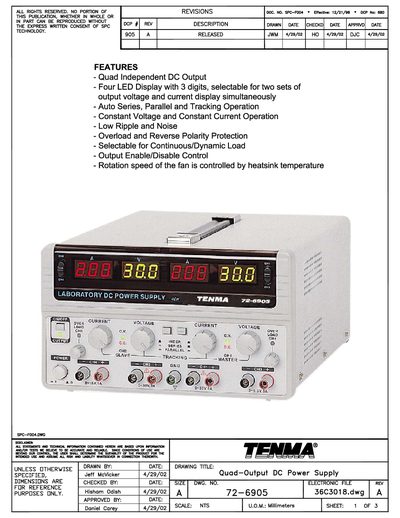

The Tenma Quad‑Output DC Power Supply provides four independent DC outputs with selectable voltage and current displays, auto series/parallel/tracking operation, and protection features such as overload and reverse polarity. It includes LED indicators, fan speed control based on heatsink temperature, and enable/disable output control.
The document lists detailed electrical specifications for each channel, including voltage and current ranges, line and load regulation, ripple and noise limits, as well as mechanical data such as dimensions, weight, power source options, and included accessories.
| Output Voltage Range (CH1‑CH4) | CH1 0~30V, CH2 3~6V, CH3 8~15V, CH4 8~15V |
|---|---|
| Output Current Range (CH1‑CH4) | CH1 0~3A, CH2 1A Fixed, CH3 1A Fixed, CH4 1A Fixed |
| Line Regulation (Constant Voltage, CH1‑CH2) | <0.01% + 3mV |
| Load Regulation (Constant Voltage, CH1‑CH2) | <0.01% + 3mV (rating current <3A) |
| Ripple & Noise (Constant Voltage, CH1‑CH2) | <1mVrms 5Hz ~ 1MHz |
| Power Source | AC 100V/120V/220V/240V ±10%, 50/60Hz |
| Dimensions & Weight | 255 mm W × 145 mm H × 315 mm D, approx. 11.5 kg |
| Meter Display | Digital 3‑digit 0.5" LED display |
Channel 1 outputs 0‑30 V, Channel 2 outputs 3‑6 V, and Channels 3 and 4 each output 8‑15 V.
The line regulation is less than 0.01 % plus 3 mV.
The package includes an instruction manual, a power cord, and four test leads.
The unit measures 255 mm W × 145 mm H × 315 mm D and weighs about 11.5 kg.
