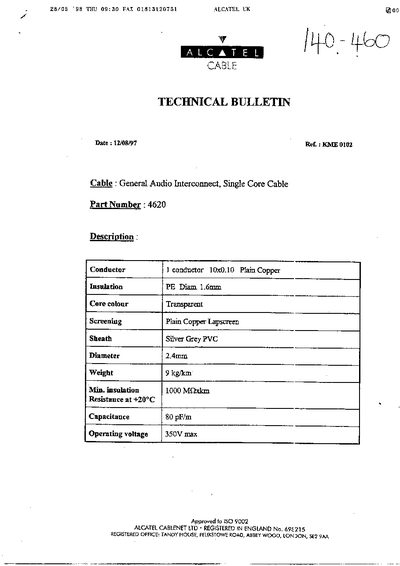

The Alcatel 4620 is a General Audio Interconnect cable with a single core design, intended for high‑quality audio signal transmission. It features a transparent core, plain copper screening, and a silver‑grey PVC sheath.
Key specifications include a 10 × 0.10 mm copper conductor, PE insulation of 1.6 mm diameter, 2.4 mm overall cable diameter, weight of 9 kg/km, and an operating voltage rating of up to 350 V. The cable complies with ISO 9002 standards.
| Conductor | 10 × 0.10 mm plain copper |
|---|---|
| Insulation material | PE, 1.6 mm diameter |
| Core colour | Transparent |
| Screening | Plain copper lapscreen |
| Sheath material | Silver grey PVC |
| Overall diameter | 2.4 mm |
| Weight | 9 kg/km |
| Minimum insulation | 1000 MQ·km |
| Capacitance | 80 pF/m |
| Operating voltage | 350 V max |
| Quality standard | ISO 9002 |
The part number is 4620.
It is rated for a maximum operating voltage of 350 V.
The cable weighs 9 kg per kilometer.
The insulation is PE with a diameter of 1.6 mm.
