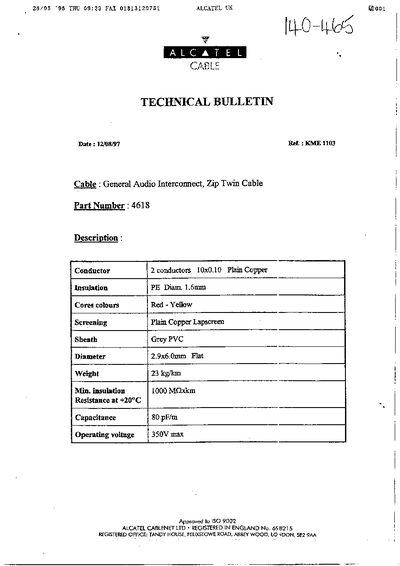

This document is a technical bulletin from Alcatel regarding Part Number 4618, identified as a General Audio Interconnect Zip Twin Cable. It provides specific details on the cable's physical construction, including conductor composition, insulation type, core colors, screening method, and sheath material.
The bulletin lists key electrical and mechanical specifications for the cable, such as diameter (2.9x6.0mm Flat), weight (23 kg/km), capacitance (80 pF/m), operating voltage (350V max), and resistance characteristics at +20°C.
| Part Number | 4618 |
|---|---|
| Product Type | General Audio Interconnect, Zip Twin Cable |
| Conductor Composition | 2 conductors 10x0.10 Plain Copper |
| Insulation Type | PE Diam. !.6mm |
| Cores Colors | Red - Yellow |
| Screening Type | Plain Copper Lapscreen |
| Sheath Material | Grey PVC |
| Diameter | 2.9x6.0mm Flat |
| Weight | 23 kg/km |
| Capacitance | 80 pF/m |
| Operating Voltage | 350V max |
The part number for this General Audio Interconnect Zip Twin Cable is 4618.
The cores of the cable are colored Red and Yellow.
