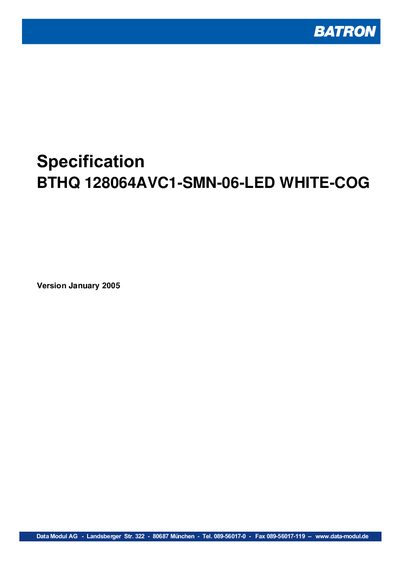

This document is a specification for the BTHQ 128064AVC1-SMN-06-LED WHITE-COG product, including mechanical specifications, interface signals, and electrical specifications.
The BTHQ 128064AVC1-SMN-06-LED WHITE-COG is a 128 × 64 dot STN LCD graphic module with a white LED backlight. It uses a UC1601 (COG) LCD controller‑driver and operates from a +3 V logic supply. The module features an FPC connector and a viewing direction of 6 o’clock.
The document provides mechanical dimensions (76.5 × 82.5 × 8.5 mm), electrical pin definitions, maximum ratings, and LED backlight characteristics. It also includes interface signal descriptions for both parallel and serial modes, as well as cosmetic and handling guidelines.
| Outline dimensions (W × H × D) | 76.5 × 82.5 × 8.5 mm |
|---|---|
| Display format | 128 × 64 dots |
| Dot size | 0.43 × 0.57 mm |
| Dot pitch | 0.445 × 0.585 mm |
| Logic power supply | +3 V |
| Backlight type | White LED |
The module has a resolution of 128 × 64 dots.
The logic circuitry operates from a +3 V supply.
Pin A is the anode and pin K is the cathode of the white LED backlight.
