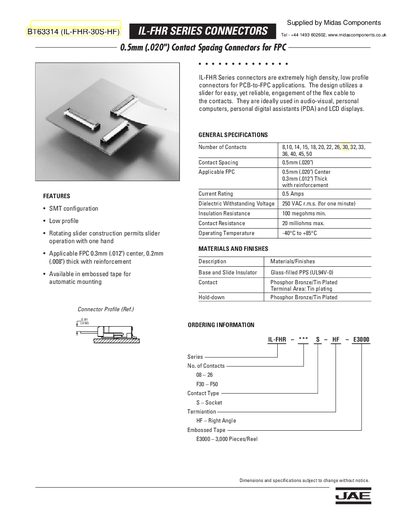

IL-FHR Series connectors are extremely high density, low profile connectors for PCB-to-FPC applications. The design utilizes a slider for easy, yet reliable, engagement of the flex cable to the contacts. They are ideally used in audio-visual, personal computers, personal digital assistants (PDA) and LCD displays.
The IL-FHR series connectors from JAE provide extremely high‑density, low‑profile solutions for PCB‑to‑FPC connections. Featuring a rotating slider for one‑hand operation, they are suited for audio‑visual equipment, PCs, PDAs and LCD displays.
Key specifications include 0.5 mm contact spacing, up to 50 contacts, 0.5 A current rating, 250 VAC dielectric withstand, and operation from –40 °C to +85 °C. Ordering options cover various contact counts, right‑angle or straight terminations, and embossed tape reels.
| Contact Spacing | 0.5 mm (0.020 in) |
|---|---|
| Number of Contacts | 8, 10, 14, 15, 18, 20, 22, 26, 30, 32, 33, 36, 40, 45, 50 |
| Current Rating | 0.5 A |
| Dielectric Withstand Voltage | 250 VAC rms (1 min) |
| Insulation Resistance | 100 MΩ min |
| Contact Resistance | 20 mΩ max |
| Operating Temperature | -40 °C to +85 °C |
| Base and Slide Insulator Material | Glass‑filled PPS (UL94V‑0) |
| Contact Material | Phosphor Bronze/Tin Plated |
The connectors have a contact spacing of 0.5 mm (0.020 in).
Each connector is rated for a maximum current of 0.5 A.
They can withstand 250 VAC rms for up to one minute.
Contact counts range from 8 up to 50, including 8, 10, 14, 15, 18, 20, 22, 26, 30, 32, 33, 36, 40, 45, and 50.
