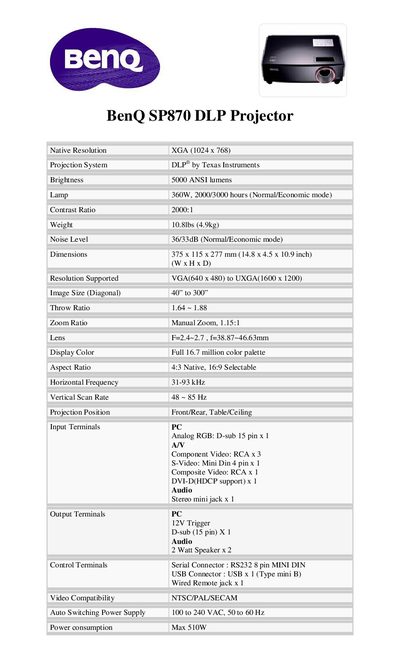

The SP870 is a DLP® projector with a native XGA (1024 × 768) resolution, 5000 ANSI lumens brightness, and a 360 W lamp rated for 2000 hours in normal mode. It weighs 10.8 lb, measures 375 × 115 × 277 mm, and offers a throw ratio of 1.64 ~ 1.88 with a manual zoom of 1.15:1. The projector supports a wide range of video inputs, audio outputs, and control interfaces.
The on‑screen display supports ten languages and includes preset picture modes such as Dynamic, Presentation, sRGB, and Cinema. Additional functions include 3D Color Management, Quick Auto Search, and a built‑in timer. Optional accessories include a ceiling‑mount kit, presentation plus module, and spare lamp kit.
| Native Resolution | XGA (1024 x 768) |
|---|---|
| Brightness | 5000 ANSI lumens |
| Lamp Life (Normal/Economic) | 2000/3000 hours |
| Contrast Ratio | 36/33 dB |
| Weight | 10.8 lbs (4.9 kg) |
| Dimensions (W × H × D) | 375 × 115 × 277 mm |
| Throw Ratio | 1.64 ~ 1.88 |
| Zoom Ratio | Manual Zoom, 1.15:1 |
| Lens Focal Length | F=2.4~2.7, f=38.87~46.63 mm |
| Display Color | Full 16.7 million color palette |
| Aspect Ratio | 4:3 Native, 16:9 Selectable |
| Horizontal Frequency | 31‑93 kHz |
| Vertical Scan Rate | 48 ~ 85 Hz |
| Power Consumption (Max) | 510 W |
The lamp is rated for 2000 hours in normal mode.
OSD languages include English, French, German, Italian, Spanish, Korean, Traditional Chinese, Simplified Chinese, Japanese, and Russian.
The projector delivers 5000 ANSI lumens of brightness.
