The MX511 is a multimedia projector from BenQ. It has a native resolution of XGA (1024 x 768), a brightness of 2700 ANSI lumens, and a contrast ratio of 3000:1. The projector supports HDMI, VGA, S-Video, Composite Video, Stereo Mini-Jack, and Analog RGB input interfaces, and Variable Audio Out, RS-232, and USB Type B output interfaces.
The MX511 is a XGA (1024 × 768) multimedia projector delivering 2700 ANSI lumens brightness and a 3000:1 contrast ratio. It supports a range of video sources via HDMI, RGB/component, S‑Video, and composite inputs, and offers variable audio output, 3D‑Ready, digital zoom, and quick‑cooling functions.

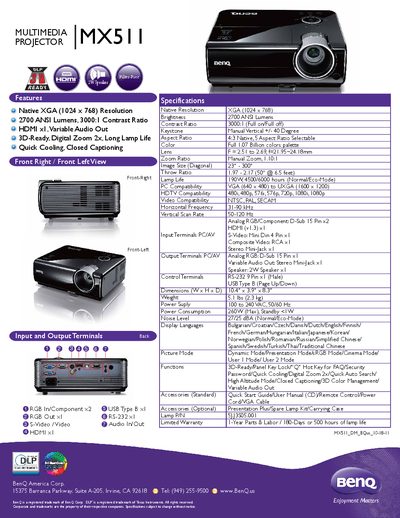

The manual details dimensions (10.4" × 3.9" × 8.3"), weight (5.1 lb), power consumption (260 W max, <1 W standby), and lamp life of 4500 hours (normal) or 6000 hours (eco). It also lists supported picture modes, language options, and optional accessories such as a spare lamp kit and carrying case.
| Native Resolution | XGA (1024 × 768) |
|---|---|
| Brightness | 2700 ANSI Lumens |
| Contrast Ratio | 3000:1 |
| Throw Ratio | 1.97 – 2.17 (50° @ 6.5 ft) |
| Dimensions (W × H × D) | 10.4" × 3.9" × 8.3" |
| Power Consumption | 260 W (Max), <1 W standby |
| Noise Level | 27 dBA (Normal) / 25 dBA (Eco‑Mode) |
The MX511 provides 2700 ANSI lumens of brightness.
The projector includes HDMI, two RGB/component D‑Sub inputs, S‑Video, composite video, VGA, and USB Type‑B ports.
It has a native XGA resolution of 1024 × 768 pixels.
