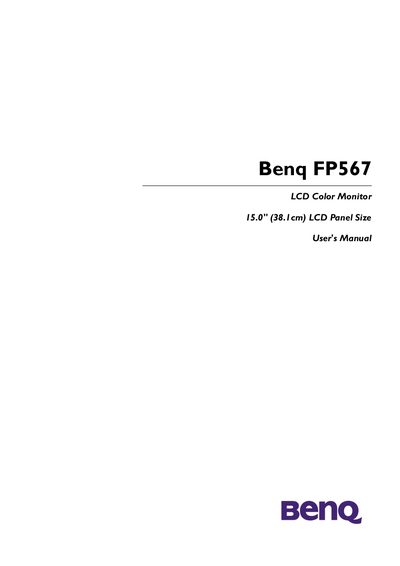

This manual introduces the use and precautions of Benq FP567 LCD Color Monitor
This manual covers safety guidelines, unpacking, and hardware installation for the BenQ FP567 15.0" LCD monitor. It explains how to connect the power, audio, and VGA cables, and provides power‑supply specifications for worldwide use.
The guide details the control panel keys, hot‑key modes for contrast and brightness, and supported operating modes such as DOS and VESA resolutions. Technical specifications, power consumption, and environmental limits are listed, along with troubleshooting tips and FAQs.
| Display type | 15.0" active TFT |
|---|---|
| Viewable diagonal | 38.1 cm |
| Native resolution | 1024x768 |
| Colors | 16.7 million |
| Contrast / Brightness | 350:1 / 250 cd/m² |
| Response time | 30 ms |
| Power consumption (max) | 40 Watt |
| Operating voltage | 90‑264 V, 47‑63 Hz |
| Dimensions | 354 x 362 x 190 mm |
Press the “<” key to enter Contrast hot‑key mode, use “<” or “>” to adjust the level, and press “Exit” to save.
The monitor uses an automatic switched‑mode power supply that works from 90 V to 264 V at 47‑63 Hz.
Supported modes include DOS resolutions like 640×480 and VESA modes up to 1024×768 at 75 Hz, as listed in the operating modes table.
Unplug the monitor from the wall outlet and clean it with a soft cloth; avoid liquid or aerosol cleaners.
