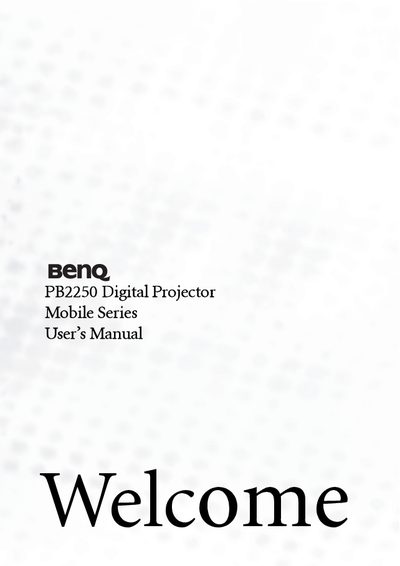

This manual introduces the features and characteristics of the PB2250 Digital Projector Mobile Series, including safety instructions, product features, shipping contents, exterior view, controls and functions, and positioning the projector.
This manual explains how to install, operate, and maintain the BenQ PB2250 Digital Projector. It includes important safety instructions, such as not opening the cabinet, allowing the lamp to cool, and keeping ventilation clear, to ensure safe and reliable use.
The guide also details the projector's features, supported input connections, menu system, and technical specifications, including resolution, lamp power, power consumption, dimensions, and environmental requirements.
| Model | PB2250 |
|---|---|
| Resolution | 1024 x 768 XGA |
| Optical display system | 1-CHIP DMD |
| Lens focal length | F=2.4 to 2.6, f=18.6 to 22.7 mm |
| Lamp | 200W |
| Power supply | AC100‑240V, 3.5A, 50/60 Hz |
| Power consumption (max) | 265 W |
| Dimensions (W×H×D) | 238 mm × 86.8 mm × 180 mm |
| Weight | 4.2 lb (1.9 kg) |
| Video input | RGB D‑sub 15‑pin, S‑Video Mini‑DIN 4‑pin, HDMI not provided |
| Audio input | Mini‑jack stereo socket |
| Operating temperature range | 0 °C – 40 °C |
Do not open the cabinet because there are no user‑serviceable parts, allow the lamp to cool before replacement, keep ventilation clear, and avoid placing the unit on soft surfaces or in high‑humidity or high‑temperature environments.
The projector uses a 200 W lamp and has a maximum power consumption of 265 W.
It accepts an RGB D‑sub 15‑pin video input, a S‑Video Mini‑DIN 4‑pin port, and a stereo audio mini‑jack.
