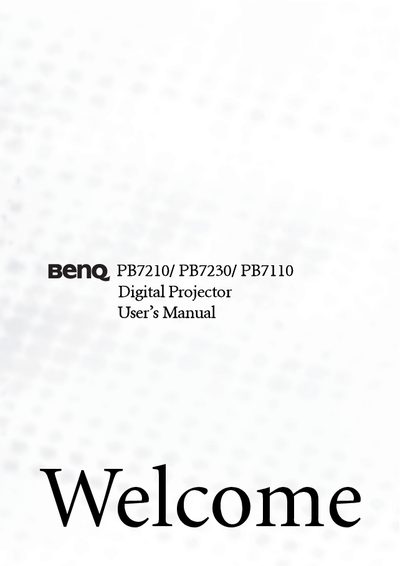

This manual introduces the basic functions and features of the PB7210/PB7230/PB7110 digital projector, and provides operating instructions.
This manual covers important safety instructions, proper handling, and installation procedures for the BenQ PB7210, PB7230 and PB7110 digital projectors. It includes details on shipping contents, external control panel layout, remote control functions, and recommended mounting practices.
The document also provides operating instructions such as start‑up, keystone correction, source selection, menu navigation, lamp replacement, and troubleshooting. Technical specifications, dimensions, power requirements, and warranty information are listed in the final sections.
| Model name | PB7210 / PB7230 / PB7110 |
|---|---|
| Resolution | 1024 x 768 (PB7210/PB7230), 800 x 600 (PB7110) |
| Lamp power | 250 W |
| Power consumption (max) | 330 W |
| Dimensions (W x H x D) | 258 mm x 80 mm x 211.5 mm |
| Weight | 5.9 lbs (2.7 kg) |
| Operating temperature range | 0°C to 40°C |
| Power supply | AC 100‑240 V, 4.0 A, 50/60 Hz |
The maximum power consumption is 330 W.
The projector measures 258 mm wide, 80 mm high, and 211.5 mm deep.
It uses a 250 W lamp.
