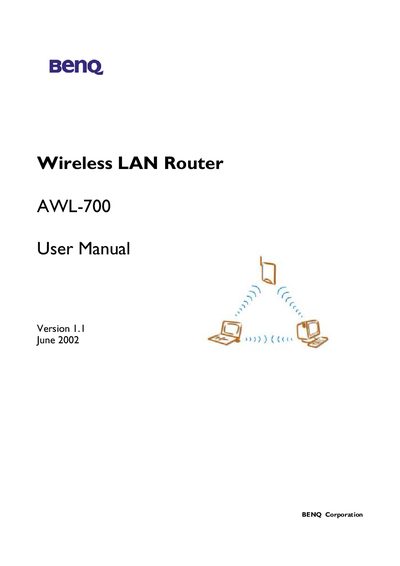

This document is the user manual for BENQ Corporation Wireless LAN Router AWL-700. It includes copyright statement, FCC warning, and product specifications.
The AWL-700 is a wireless LAN router that includes a 4‑port auto‑sensing crossover Ethernet switch, NAT‑type firewall, and support for both WAN and LAN 10/100 base‑TX ports. It can share a single IP address among up to 32 users and offers features such as DHCP server, virtual server, and web‑based management.
This manual covers hardware installation, LED indicator meanings, default settings, firmware upgrades, and detailed TCP/IP configuration for Windows operating systems. It also includes troubleshooting tips and an appendix with step‑by‑step network setup instructions.
| Default IP address | 192.168.1.1 |
|---|---|
| WAN/LAN port speed | 10/100 base‑TX |
| Ethernet switch | 4‑port auto‑sensing crossover |
| Firewall type | NAT‑type firewall |
| Power LED color | Green when powered on |
Use the Load Default Setting utility page to load the default configuration, which will erase all previous settings.
The default IP address is 192.168.1.1.
