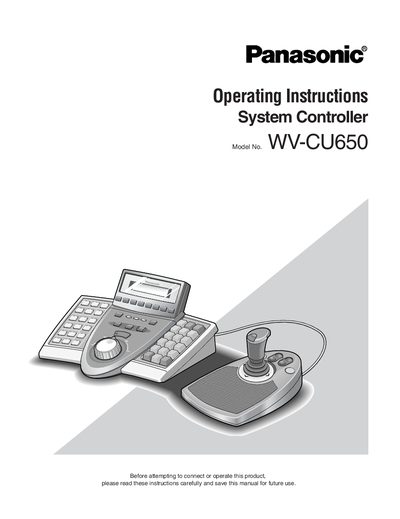

This manual introduces the connection and operation of the WV-CU650 system controller.
The Panasonic WV-CU650 System Controller is designed for surveillance systems to control cameras, matrix switchers, and recording devices. It features a 3D joystick, customizable function buttons, and multi‑screen display capabilities, allowing up to four controllers to be linked together.
This manual provides safety guidelines, installation and connection procedures, hardware and firmware setup steps, detailed menu and button functions, alarm handling, and troubleshooting tips. It also lists technical specifications and standard accessories for the unit.
| Power source (controller) | 9 V DC, 300 mA (using supplied AC adapter) |
|---|---|
| AC adapter input | 120 V AC, 60 Hz, 200 mA |
| Ambient operating temperature | –10 °C to +50 °C |
| Main unit dimensions | 290 mm (W) × 111 mm (H) × 221 mm (D) |
| Controller number range | 1 to 8 (rotary switch) |
| Unit number selection | 1 to 99 |
| Monitor number selection | 1 to 99 |
| Camera number selection | 1 to 256 |
| Serial port | 9‑pin D‑sub connector |
It uses a 9 V DC, 300 mA supply from the supplied AC adapter, which itself needs 120 V AC, 60 Hz, 200 mA.
Up to four WV‑CU650 System Controllers can be connected for multiple‑operation setups.
The controller operates between –10 °C and +50 °C.
