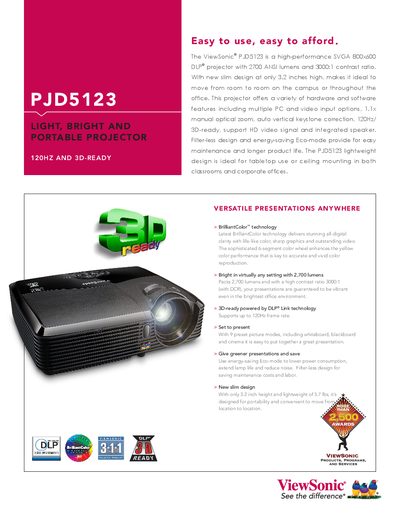

The ViewSonic PJD5123 is a high-performance SVGA 800x600 DLP projector with 2700 ANSI lumens and 3000:1 contrast ratio. It features a new slim design at only 3.2 inches high, making it ideal for moving from room to room on the campus or throughout the office. This projector offers a variety of hardware and software features including multiple PC and video input options, 1.1x manual optical zoom, auto vertical keystone correction, 120Hz/ 3D-ready, support HD video signal and integrated speaker. Filter-less design and energy-saving Eco-mode provide for easy maintenance and longer product life. The PJD5123 lightweight design is ideal for tabletop use or ceiling mounting in both classrooms and corporate offices. Easy to use, easy to afford.
The ViewSonic PJD5123 is a compact SVGA (800x600) DLP projector delivering 2700 ANSI lumens and a 3000:1 dynamic contrast ratio. It features a 1.1× manual optical zoom, vertical keystone correction, 120 Hz/3D‑ready capability, and integrated speakers, making it suitable for classrooms and corporate presentations.
The manual covers hardware specifications, connection options (RGB, component, composite, S‑Video, audio, RS‑232), control functions, optional accessories, and environmental limits. It also lists package contents, warranty terms, and regulatory compliance information.
| Resolution | SVGA 800x600 (Native) |
|---|---|
| Brightness | 2700 Lumens |
| Contrast Ratio | 2000:1 (typ), 3000:1 (dynamic) |
| Lamp Life (Eco Mode) | 6000 hours |
| Throw Ratio | 1.97‑2.17 |
| Power Consumption (Typical) | 235 W |
| Weight | 5.7 lb (2.6 kg) |
The projector provides 2700 ANSI lumens of brightness.
In Eco mode the lamp is rated for up to 6000 hours of use.
The unit weighs approximately 5.7 lb (2.6 kg).
