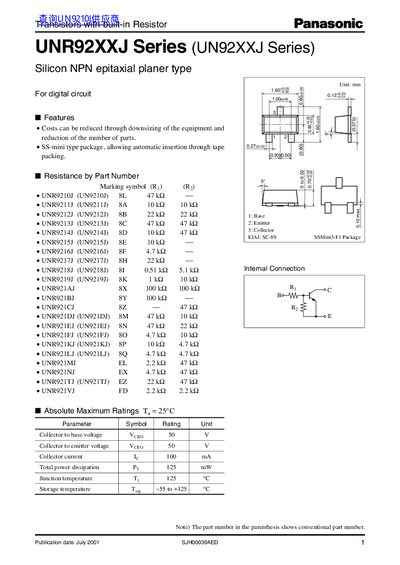

UNR92XXJ series (UN92XXJ series) is a silicon NPN epitaxial planer type for digital circuit, with features as follows: cost can be reduced through downsizing of the equipment and reduction of the number of parts; SS-mini type package, allowing automatic insertion through tape packing.
The UNR92XXJ series from Panasonic consists of silicon NPN epitaxial planar transistors offered in SS‑mini packages for automatic insertion. The series includes a range of resistance values (1 kΩ to 100 kΩ) and is intended for digital circuit applications where size reduction and part count minimisation are important.
The datasheet provides absolute maximum ratings, detailed electrical characteristics, and characteristic curves for each part number. Key parameters such as collector‑to‑base voltage, collector‑to‑emitter voltage, collector current, power dissipation, and temperature limits are listed, along with typical values for output capacitance and gain.
| Collector‑to‑base voltage (Vebo) | 50 V |
|---|---|
| Collector‑to‑emitter voltage (Vceo) | 50 V |
| Collector current (Ic) | 100 mA |
| Total power dissipation (Pd) | 125 mW |
| Junction temperature (Tj) | 125 °C |
| Storage temperature range | -55 °C to +125 °C |
The maximum collector current is 100 mA.
They are rated for a collector‑to‑emitter voltage of 50 V.
The devices can be stored from –55 °C up to +125 °C.
The total power dissipation is limited to 125 mW.
