This document is an operating instruction for a Panasonic product. It provides information about the product's compatibility, necessary subscription service, website assistance, and product registration.

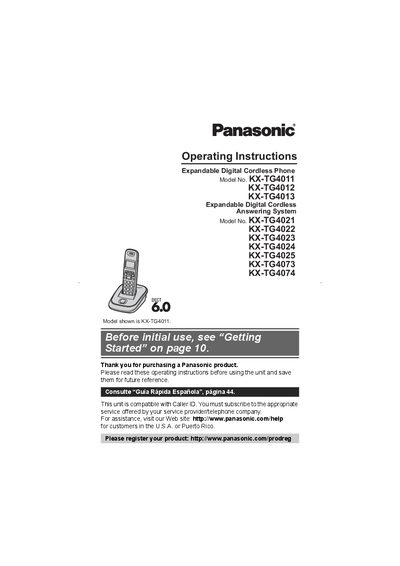

This manual provides step‑by‑step guidance for installing and operating the Panasonic KX‑TG4011 expandable digital cordless phone. It includes information on accessories, initial setup, making and answering calls, programming features, and using the answering system.
Safety precautions, battery handling, FCC compliance, warranty details, and a full troubleshooting guide are also included to help users maintain reliable performance and resolve common issues.
| Standard | DECT 6.0 |
|---|---|
| Frequency range | 1.92 GHz to 1.93 GHz |
| RF transmission power | 115 mW (max) |
| Power source | 120 V AC, 60 Hz |
| Base unit power consumption (standby) | ≈ 1.0 W |
| Charger power consumption (standby) | ≈ 0.1 W |
| Operating temperature range | 0 °C – 40 °C (32 °F – 104 °F) |
| Relative humidity | 20 % – 80 % (dry) |
Use only rechargeable Ni‑MH AAA (R03) batteries; alkaline, manganese or Ni‑Cd batteries must not be used.
The phone operates in the 1.92 GHz to 1.93 GHz frequency range.
Only use the power source marked on the product and do not overload outlets or extension cords.
