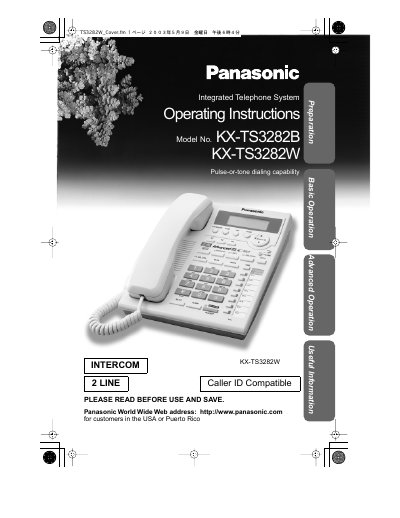

This document is about the Panasonic KX-TS3282B KX-TS3282W telephone's operating instructions, which introduces the basic operation, useful information, advanced operation, preparation, maintenance, etc. of the telephone.
This manual provides step‑by‑step guidance for installing and using the Panasonic KX‑TS3282B integrated telephone system. It includes details on connecting the handset, AC adaptor, battery installation, and telephone line cords, as well as how to navigate the display and use the navigator key.
The document also covers advanced features such as Caller ID, call waiting, intercom, paging, programming settings, and troubleshooting tips. Technical specifications, warranty information, and service contacts are provided at the end of the guide.
| Power Supply | AC adaptor (120 V AC, 60 Hz) |
|---|---|
| Battery Type | Three AA size Manganese (R6, UM‑3) or AA Alkaline (LR6) |
| Power Consumption (Standby) | Approx. 1 W |
| Power Consumption (Maximum) | Approx. 1.5 W |
| Dimensions (H × W × D) | 96 mm × 186 mm × 231 mm |
| Mass | Approx. 890 g (1.94 lb) |
| Dialing Mode | Tone (DTMF) / Pulse |
| Operating Environment | 5 °C – 40 °C (41 °F – 104 °F) |
The unit uses three AA size Manganese (R6, UM‑3) batteries, but AA Alkaline (LR6) batteries can also be used.
The standby power consumption is approximately 1 W.
The unit measures about 96 mm × 186 mm × 231 mm (height × width × depth).
