Key facts
- Brand
- AME
- Model
- AME8501
- Industry
- Industrial
- Documents
- 4
- Languages
- EN
- Last added
- 2012-06-06
Start here

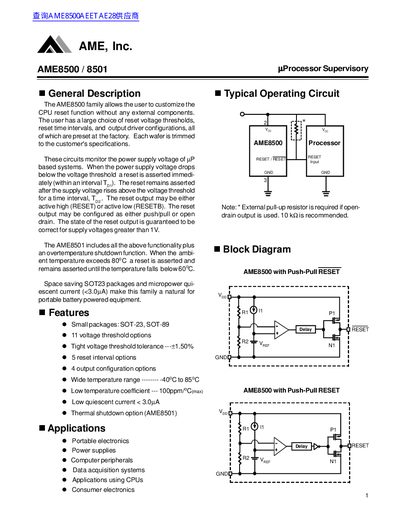

AME AME8500/8501 Processor Supervisory Datasheet
The AME8500 family of processor supervisory circuits allows users to customize CPU reset functions without external components. These devices monitor power supply voltages in battery-based systems, asserting a reset immediately if the voltage drops below a preset threshold and releasing it after a specific time interval once the voltage recovers.
Read onlineAME AME8501 specifications
| Supply Voltage Range | 1.6-5 V |
|---|---|
| Ambient Temperature Range | -40 to +85 °C |
| Quiescent Current | <3.0uA |
| Thermal Shutdown Threshold (AME8501) | >80°C |
| Package Types | SOT-23, SOT-89, SOT-25 |
All AME AME8501 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the function of the AME8501 overtemperature shutdown?
When the ambient temperature exceeds 80°C a reset is asserted and remains asserted until the temperature falls below 60°C.
Is an external pull-up resistor required for open-drain outputs?
Yes, an external pull-up resistor is required if an open-drain output is used.
What package types are offered for the AME8500/8501?
The devices are available in SOT‑23, SOT‑89 and SOT‑25 surface‑mount packages.
What is the quiescent current of the AME8500/8501?
The quiescent current is less than 3 µA.
What is the quiescent current of the device?
The quiescent current is less than 3 µA.
What package types are available for the AME8500/8501?
The devices are offered in SOT‑23, SOT‑89 and SOT‑25 packages.
