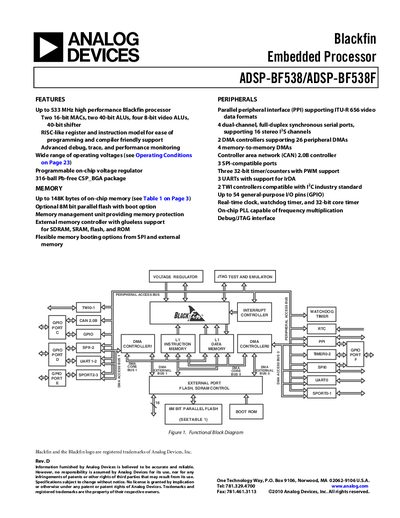

This document describes the features and characteristics of Analog Devices' Blackfin Embedded Processor ADSP-BF538/ADSP-BF538F Rev. D, including high-performance processor, multiple arithmetic units, RISC-like register and instruction model for ease of programming and compiler support, advanced debugging and performance monitoring capabilities, etc.
The ADSP-BF538/ADSP-BF538F processors belong to Analog Devices' Blackfin family and combine a high‑performance DSP core with a RISC‑like instruction set. They support up to 533 MHz clock speed, a 316‑ball CSP‑BGA package, and a range of on‑chip memory configurations.
The devices provide a rich set of peripherals, including multiple UARTs, SPI ports, CAN 2.0B controller, parallel peripheral interface, timers with PWM, and up to 54 GPIO pins. Optional 8 M‑bit parallel flash and external memory interfaces (SDRAM, SRAM, flash) enable flexible system designs for audio, video, and industrial applications.
| Maximum processor frequency | 533 MHz |
|---|---|
| Package type | 316‑ball CSP‑BGA |
| On‑chip memory (instruction + data) | Up to 148 KB |
| Optional flash memory | 8 M‑bit parallel flash (512 K × 16‑bit) |
| UART ports | 3 |
| CAN controller | CAN 2.0B |
| General‑purpose I/O pins | Up to 54 |
| DMA controllers | 2 peripheral DMA + 4 memory‑to‑memory DMA |
| Timers with PWM | 3 timers with PWM support |
The ADSP-BF538 can run at up to 533 MHz.
The device includes three UART ports.
Yes, the ADSP‑BF538F variant provides an optional 8 M‑bit parallel flash die.
A CAN 2.0B controller is integrated.
