This document introduces ADuC845/ADuC847/ADuC848 3 models of microcontrollers, which include 24/16-bit high-precision Σ-∆ ADCs, 62 kB of Flash memory and single-cycle MCU, which can be used in various industrial automation, medical equipment and consumer electronics.

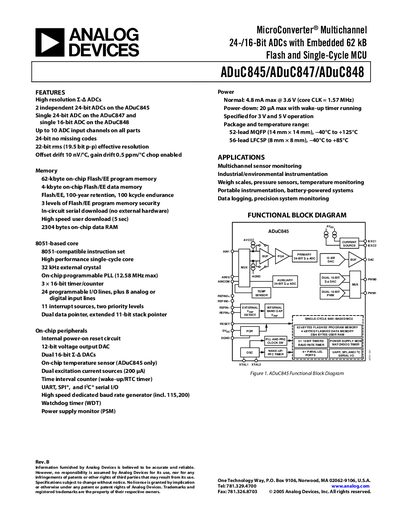

The ADuC845 family is a line of 24‑/16‑bit microcontrollers with integrated high‑resolution ADCs, on‑chip flash, and a full set of peripherals. The handbook provides a complete description of the device architecture, pin functions, register maps, and programming guidelines.
It includes detailed specifications for the primary and auxiliary ADCs, power consumption, memory organization, and timing characteristics, as well as application notes for sensor monitoring, data logging, and portable instrumentation.
| Flash program memory | 62 kB |
|---|---|
| On‑chip data RAM | 2304 bytes |
| Normal‑mode power consumption | 4.8 mA max @ 3.6 V |
Up to 10 ADC input channels are available on all parts.
The device includes 62 kB of on‑chip flash/EE program memory.
The start‑up time from power‑on is specified as 600 ms.
