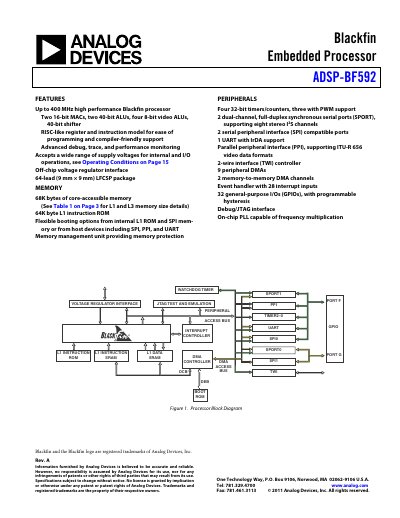

Blackfin Embedded Processor ADSP-BF592 Rev. A is a high-performance Blackfin processor from Analog Devices, Inc. It has two 16-bit MACs, two 40-bit ALUs, four 8-bit video ALUs, and a 40-bit shifter.
The ADSP-BF592 Rev. A is a high‑performance Blackfin embedded processor offering up to 400 MHz operation, dual 16‑bit MACs, four video ALUs and a rich set of on‑chip peripherals. The handbook describes the processor architecture, memory hierarchy, power‑management features and integration options for digital communication and multimedia applications.
Key sections cover the processor core, memory architecture, event handling, DMA controllers, timers, serial ports and other peripherals, providing developers with the information needed to design, program and debug systems based on this device.
| Maximum Core Clock Speed | 400 MHz |
|---|---|
| Core‑Accessible Memory | 68 KB |
| L1 Instruction ROM | 64 KB |
| General‑Purpose I/Os (GPIOs) | 32 |
| Timers/Counters | Four (three with PWM support) |
| SPORT Ports | 2 dual‑channel synchronous serial ports |
| SPI Ports | 2 |
| UART | 1 with IrDA support |
| Peripheral DMAs | 9 |
| Memory‑to‑Memory DMA Channels | 2 |
| Interrupt Inputs | 28 |
| Package | 64‑lead LFCSP |
The processor can operate at up to 400 MHz.
It provides 68 KB of core‑accessible memory.
The processor includes 32 general‑purpose I/Os.
Four programmable timers are provided, three of which support PWM.
