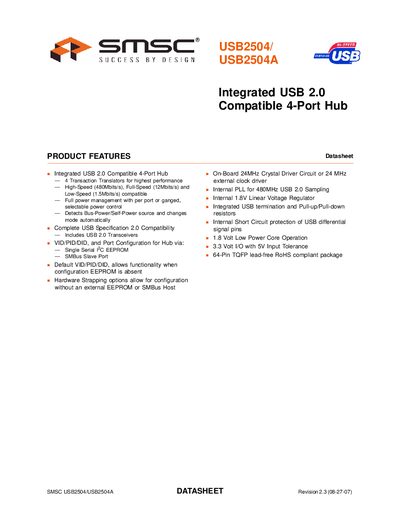

This datasheet provides detailed information on the features and characteristics of the SMSC USB2504/USB2504A Integrated USB 2.0 Compatible 4-Port Hub.
The SMSC USB2504/USB2504A is a fully compliant USB 2.0 hub that can operate as a Full‑Speed, High‑Speed or Low‑Speed hub. It includes four downstream ports, each with its own Transaction Translator for maximum throughput, and supports both bus‑powered and self‑powered operation with selectable power‑switching options.
The device is offered in a 64‑pin TQFP lead‑free RoHS‑compliant package and contains an internal 1.8 V linear regulator, a 24 MHz crystal driver (or external clock), integrated USB termination, pull‑up/pull‑down resistors, and over‑current protection. Configuration can be performed via internal defaults, an external EEPROM, or an SMBus interface.
| Number of ports | 4‑Port Hub |
|---|---|
| Supported USB speeds | High‑Speed (480 Mbit/s), Full‑Speed (12 Mbit/s), Low‑Speed (1.5 Mbit/s) |
| Internal regulator | 1.8 V linear voltage regulator |
| Input voltage tolerance | 3.3 V /0 V with 5 V input tolerance |
| Package type | 64‑Pin TQFP lead‑free RoHS compliant |
| Crystal/clock | On‑board 24 MHz crystal driver or external 24 MHz clock |
| Crystal specification | 24 MHz, +100 ppm |
| External clock jitter | < 100 ps rms |
| I²C EEPROM frequency | 59 kHz ±20 % |
It supports High‑Speed (480 Mbit/s), Full‑Speed (12 Mbit/s) and Low‑Speed (1.5 Mbit/s).
Configuration can be done via internal defaults, an external EEPROM, or through the SMBus slave interface.
The device is supplied in a 64‑pin TQFP lead‑free RoHS‑compliant package.
The hub includes an internal 1.8 V linear voltage regulator.
