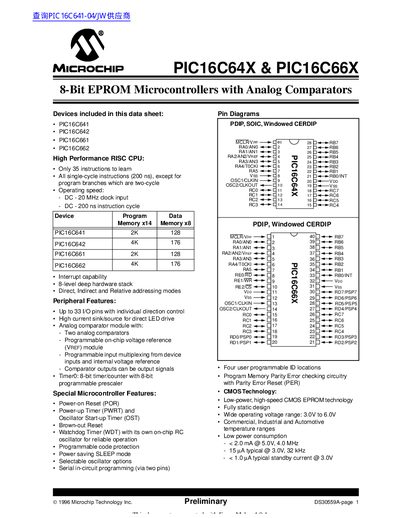

This datasheet lists the features of the PIC16C641, PIC16C642, PIC16C661 and PIC16C662 microcontrollers.
The PIC16C64X and PIC16C66X families are 8‑bit EPROM‑based microcontrollers featuring a high‑performance RISC core, up to 33 I/O pins, two analog comparators, and programmable voltage reference. They support a range of oscillator options and include power‑saving modes such as SLEEP and Watchdog Timer.
The document provides detailed specifications, pin diagrams for PDIP, SOIC, TQFP and windowed CERDIP packages, memory organization, peripheral features, and ordering information through the product identification system.
| Operating speed | 20 MHz clock input |
|---|---|
| Instruction cycle time | 200 ns |
| Program memory (PIC16C641) | 2 KB |
| RAM (PIC16C641) | 128 bytes |
| Program memory (PIC16C662) | 4 KB |
| RAM (PIC16C662) | 176 bytes |
| Operating voltage range | 3.0 V to 6.0 V |
| Typical current consumption @5 V, 4 MHz | <2.0 mA |
| Typical standby current @3 V | <1.0 µA |
The devices operate with a 20 MHz clock input.
The PIC16C662 provides up to 33 I/O pins.
Four oscillator options are available: single‑pin RC, LP (low‑power), XT (standard crystal), and HS (high‑speed crystal).
Yes, serial in‑circuit programming is supported via two pins.
