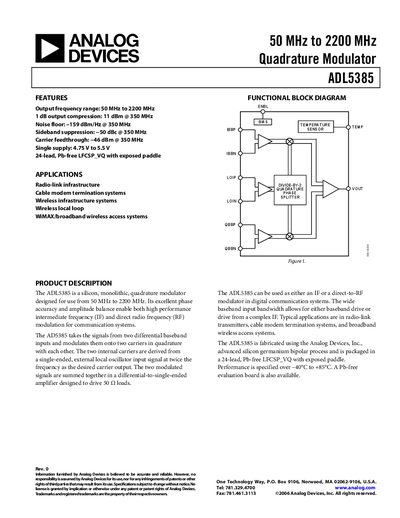

The ADL5385 is a silicon, monolithic, quadrature modulator designed for use from 50 MHz to 2200 MHz. Its excellent phase accuracy and amplitude balance enable both high performance analog modulation applications.
The ADL5385 is a monolithic quadrature modulator designed for radio‑link infrastructure, cable‑modem termination, and broadband wireless access systems. It accepts differential baseband inputs and up‑converts them to two carriers in quadrature using an external local‑oscillator input at twice the desired output frequency.
Key specifications include an output frequency range of 50 MHz to 2200 MHz, single‑supply operation from 4.75 V to 5.5 V, and performance parameters such as sideband suppression up to –50 dBc and carrier feedthrough around –46 dBm. The device is packaged in a 24‑lead Pb‑free LFCSP_VQ with exposed paddle and operates from –40 °C to +85 °C.
| Output Frequency Range | 50 MHz to 2200 MHz |
|---|---|
| Supply Voltage | 4.75 V to 5.5 V |
| Carrier Feedthrough (typical) | –46 dBm |
| Sideband Suppression (typical) | –50 dBc |
| Quadrature Phase Error | –0.17° (typical) |
| Noise Floor | –155 dBm/Hz (20 MHz offset) |
| Operating Temperature Range | –40 °C to +85 °C |
| Package | 24‑lead Pb‑free LFCSP_VQ with exposed paddle |
The ADL5385 operates from 50 MHz up to 2200 MHz.
It can be powered from a single supply of 4.75 V to 5.5 V.
Typical sideband suppression is about –50 dBc at 350 MHz.
The device is packaged in a 24‑lead Pb‑free LFCSP_VQ with an exposed paddle.
