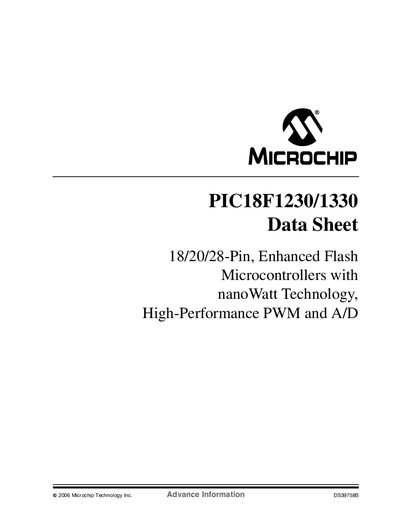

This document describes the PIC18F1230/1330 series of 18/20/28-pin enhanced flash microcontrollers with nanoWatt technology, high-performance PWM, and A/D conversion capabilities, which were released by Microchip Technology Inc. in 2006.
The Microchip PIC18F1230/1330 datasheet provides detailed information on the 18‑pin, 20‑pin and 28‑pin enhanced‑flash microcontrollers featuring nanoWatt technology, high‑performance PWM, and a 10‑bit ADC. It covers device overview, oscillator options, power‑managed modes, memory organization, peripheral modules, and electrical characteristics.
Key sections include oscillator configurations, power‑managed modes, flash program memory, PWM module details, EUSART, ADC, comparator, low‑voltage detection, and packaging information, along with revision history and migration guidance.
| Operating voltage range | 2.0 V to 5.5 V |
|---|---|
| Flash memory (PIC18F1230) | 4 KB (4096 words) |
| Flash memory (PIC18F1330) | 8 KB (8192 words) |
| PWM channel outputs | Up to 6 |
| ADC resolution | 10‑bit, up to 4 channels |
| Sleep mode current (typical) | 0.1 µA |
The devices operate from 2.0 V up to 5.5 V.
The microcontroller provides up to six PWM channel outputs.
Typical sleep mode current is 0.1 µA.
The PIC18F1330 contains 8 KB of flash memory (8192 words).
