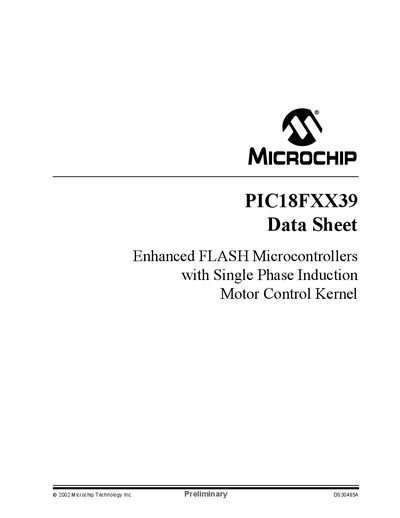

This is the DS30485A PIC18FXX39 data sheet produced by Microchip Company. The data sheet details the PIC18FXX39 Enhanced FLASH Microcontrollers with Single Phase Induction Motor Control Kernel
The PIC18FXX39 family are 8‑bit enhanced FLASH microcontrollers featuring a high‑performance RISC CPU, up to 24 KB of program memory, 1.4 KB of data memory, and a range of peripherals including multiple timers, PWM modules, ADC, USART, and a dedicated single‑phase induction motor control kernel. They operate from 2.0 V to 5.5 V and support in‑circuit serial programming and debugging.
The data sheet details pin configurations for various packages (44‑pin TQFP, 40‑pin DIP, etc.), memory organization, oscillator options, peripheral modules, motor‑control features, and electrical characteristics. Appendices cover device differences, migration notes, and revision history, while the back of the document lists worldwide sales and support contacts.
| Program memory size | up to 24 KB |
|---|---|
| Operating voltage range | 2.0 V to 5.5 V |
| Maximum CPU clock | 20 MHz (5 MIPS) |
| Flash erase/write cycle rating | 100,000 cycles |
| EEPROM erase/write cycle rating | 1,000,000 cycles |
| PWM resolution | 1‑ to 10 bit |
| Maximum PWM frequency (8‑bit) | 156 kHz |
| High‑current I/O sink/source | 25 mA per pin |
The device operates from 2.0 V to 5.5 V.
Two PWM modules are available, each supporting 1‑ to 10‑bit resolution.
The flash memory is rated for 100,000 erase/write cycles.
Yes, it supports single‑supply 5 V ICSP via two pins.
