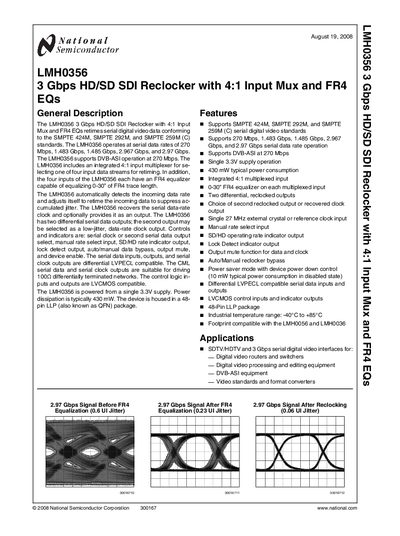

The LMH0356 is a 3Gbps HD/SD SDI Reclocker that supports a 4:1 input multiplexer and FR4 EQs. It complies with the SMPTE 424M, SMPTE 292M, and SMPTE 259M (C) standards and supports data rates of 270Mbps, 1.483Gbps, 1.485Gbps, 2.967Gbps, and 2.97Gbps. It also supports DVB-ASI operation at 270Mbps.
The LMH0356 3 Gbps HD/SD SDI Reclocker provides serial digital video retiming for SMPTE 259M, 292M, and 424M standards. It integrates a 4:1 input multiplexer and four FR4 equalizers that can compensate up to 30 inches of trace length. The device operates from a single 3.3 V supply and offers two differential LVPECL‑compatible data outputs, with an optional low‑jitter clock output.
Typical applications include digital video routers, switchers, editing equipment, and DVB‑ASI systems. The 48‑pin LLP package includes an exposed die‑attach pad for grounding, and the component is rated for an industrial temperature range of –40 °C to +85 °C.
| Serial Data Rate (SMPTE 259M) | 270 Mbps |
|---|---|
| Serial Data Rate (SMPTE 292M) | 1.483 Gbps |
| Serial Data Rate (SMPTE 424M) | 2.967 Gbps |
| Typical Power Consumption (enabled) | 430 mW |
| Operating Temperature Range | -40 °C to +85 °C |
| Maximum FR4 Trace Equalization Length | 0–30 inches |
Each input equalizer can compensate up to 30 inches of FR4 trace.
Typical power consumption is about 430 mW.
