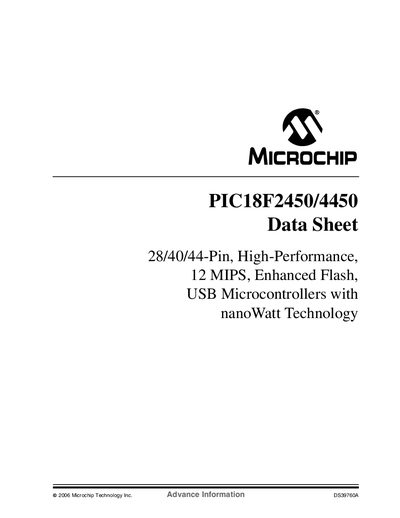

Microchip PIC18F2450/4450 Datasheet

This is a data sheet of DS39760A PIC18F2450/4450, a 28/40/44-Pin, High-Performance, 12 MIPS, Enhanced Flash, USB Microcontrollers with nanoWatt Technology

Brand: MICROCHIP
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 320
File format: PDF
File size: 5.4 MB
Published: 03 May, 2012
Updated: 01 October, 2023
Models: PIC18F2450, PIC4450, C18
MD5 checksum: A7E83E4341AD51D032A32EE25083A06F
PDF: Microchip PIC18F2450/4450 Datasheet PDF

About this manual

This datasheet describes the PIC18F2450 and PIC18F4450 28‑, 40‑ and 44‑pin microcontrollers, highlighting their high‑performance 12 MIPS core, enhanced flash memory, and integrated USB 2.0 module. It outlines power‑managed modes, oscillator options, and special CPU features such as an 8 × 8 hardware multiplier and extended instruction set.

The document includes detailed pin‑out diagrams, memory organization, peripheral modules (timers, CCP, EUSART, ADC, HLVD), USB specifications, electrical characteristics, timing diagrams, and packaging information. Appendices cover revision history, device differences, and migration guidance.

What's inside

Device Overview
Oscillator Configurations
Power‑Managed Modes
Memory Organization
USB Module
Analog‑to‑Digital Converter (A/D) Module
Electrical Characteristics
Packaging Information

Specifications

USB bus voltage	3.0 V – 3.6 V
Idle mode current consumption	5.8 µA typical
Sleep mode current consumption	0.1 µA typical
Number of USB endpoints	Up to 32 endpoints (16 bidirectional)
ADC channels	10 (28‑pin) / 13 (40/44‑pin)

Frequently asked questions

What USB speeds does the PIC18F2450/4450 support?

It supports low‑speed (1.5 Mb/s) and full‑speed (12 Mb/s) USB transfers.

How low can the current consumption be in sleep mode?

Typical sleep‑mode current is as low as 0.1 µA.
