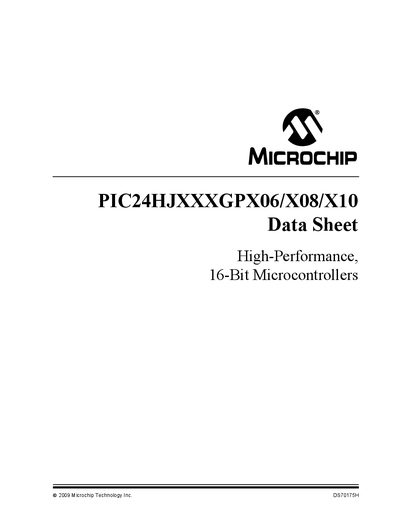

This document is a data sheet for the PIC24HJXXXGPX06/X08/X10 series high-performance 16-bit microcontrollers produced by Microchip Technology Inc. The document describes the features and characteristics of this series of products.
The PIC24HJXXXGPX06/X08/X10 family are high‑performance 16‑bit microcontrollers with up to 40 MIPS operation, industrial temperature range, and a rich set of peripherals including DMA, multiple communication modules, and flexible timers. They offer up to 256 KB of flash program memory, 16 KB of SRAM, and up to 85 programmable digital I/O pins.
The datasheet includes detailed operating ranges, pin diagrams for 64‑pin and 100‑pin TQFP packages, packaging options, product identification tables, and worldwide sales and service contact information.
| Maximum MIPS | Up to 40 MIPS (3.0‑3.6 V) |
|---|---|
| Operating Temperature | -40 °C to +85 °C |
| Flash Program Memory | Up to 256 KB |
| Data SRAM | Up to 16 KB |
| Digital I/O Pins | Up to 85 programmable pins |
| DMA Channels | 8‑channel hardware DMA |
| Timers | Up to nine 16‑bit timers |
The devices operate from –40 °C to +85 °C.
They provide an 8‑channel hardware DMA.
Each device can hold up to 256 KB of flash program memory.
