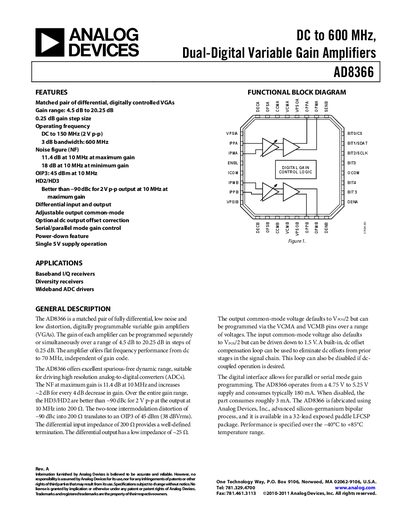

This document describes the features and characteristics of Analog Devices' Dual-Digital Variable Gain Amplifiers AD8366 Rev. A, including matched pair of differential, digitally controlled VGAs, gain range, operating frequency, noise figure, OIP3, HD2/HD3, etc.
The AD8366 is a matched pair of fully differential, low‑noise, low‑distortion variable gain amplifiers. Each channel can be programmed separately or together in 0.25 dB steps over a gain range of 4.5 dB to 20.25 dB, providing flat frequency response to 70 MHz and a 3 dB bandwidth of 600 MHz. It operates from a single 5 V supply and includes features such as output common‑mode control, optional DC offset correction, and both serial and parallel gain‑control interfaces.
Typical applications include baseband I/Q receivers, diversity receivers, and wideband ADC drivers. The device is supplied in a 32‑lead LFCSP package, rated for –40 °C to +85 °C operation, and consumes about 180 mA when enabled.
| Gain range | 4.5 dB to 20.25 dB |
|---|---|
| Gain step size | 0.25 dB |
| 3 dB bandwidth | 600 MHz |
| Noise figure (max gain) | 11.4 dB at 10 MHz |
| OIP3 | 45 dBm at 10 MHz |
| Supply voltage range | 4.75 V to 5.25 V |
| Supply current (enabled) | 180 mA |
| Operating temperature range | –40 °C to +85 °C |
| Differential input impedance | 217 Ω |
| Differential output impedance | 28 Ω |
The AD8366 provides a gain range from 4.5 dB to 20.25 dB.
It operates from a single supply between 4.75 V and 5.25 V.
Typical supply current is about 180 mA with the enable pin high.
The device has a 3 dB bandwidth of 600 MHz.
