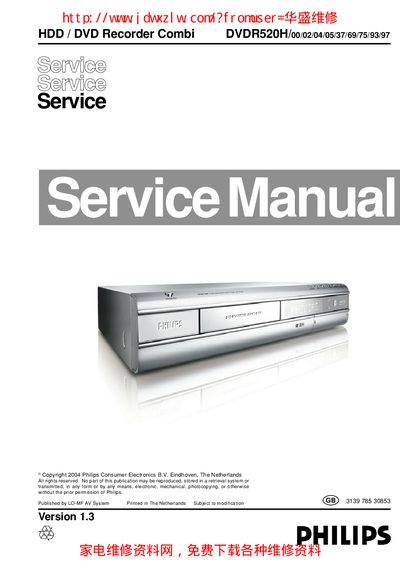

This is the maintenance manual for Philips DVDR520H/00/02/04/05/37/69/75/93/97
This manual provides detailed information for servicing the Philips DVDR520H DVD recorder, including specifications, front and rear panel descriptions, and supported media formats. It also contains step‑by‑step disassembly instructions, exploded views, and a comprehensive spare‑parts list.
The fault‑finding tree guides technicians through common problems such as power‑up issues, display failures, and drive errors, while the revision list documents updates to the service content. The document is intended for qualified service personnel.
| Disc types supported (Read Only) | DVD‑R/RW, DVD+R/RW, CD‑R/RW |
|---|---|
| Maximum number of files recognizable | 9 999 files |
| Audio output | Analog 2‑channel, Digital coaxial/optical |
| Power supply | AC 200‑240 V, 50 Hz |
| Power consumption | Approx. 50 W |
| Operating temperature | +5 °C to +40 °C |
| Operating humidity | 5 % to 80 % RH |
| Dimensions (W×H×D) | 430 mm × 66 mm × 316 mm |
| Net weight | Approx. 4.8 kg |
Up to 9 999 files can be recognized on a disc.
The unit operates on AC 200‑240 V at 50 Hz and consumes about 50 W.
Replace the front display board as indicated in the fault‑finding tree.
