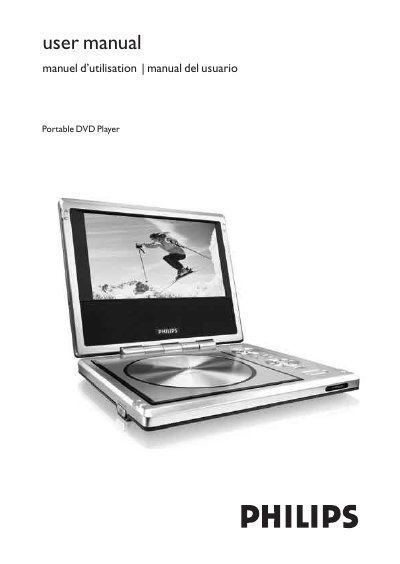

This document is a user manual for PHILIPS portable DVD player.
This manual explains how to register your Philips PET710 portable DVD player, outlines safety warnings, and describes the power options (AC adapter, car adapter, or rechargeable battery). It also covers handling of discs, basic functions, remote‑control operation, and menu navigation.
Technical specifications such as dimensions, weight, power consumption, laser wavelength, and audio/video output levels are listed, and a troubleshooting section helps resolve common issues like no power, distorted picture, or audio problems.
| Dimensions | 19.3 x 16.1 x 3.0 cm (7.72 x 6.44 x 1.2 in) |
|---|---|
| Weight | 0.824 kg (1.81 lb) |
| Power Supply | DC 9 V 2.2 A |
| Power Consumption | ≤ 30 W |
| Operating Temperature Range | 0 °C – 50 °C (32 °F – 122 °F) |
| Laser Wavelength | 650 nm |
| Video System | NTSC / PAL / AUTO |
| Frequency Response | 20 Hz ~ 20 kHz ± 1 dB |
| Signal‑to‑Noise Ratio | ≥ 85 dB |
| Audio Distortion + Noise | ≤ ‑80 dB (1 kHz) |
| Channel Separation | ≥ 85 dB |
| Dynamic Range | ≥ 80 dB |
| Audio Output Level | 2 V ± 10 % (10 kΩ load) |
| Video Output Level | 1 V p‑p ± 20 % (75 Ω load) |
Complete and return the Product Registration Card that came with the player to receive warranty benefits and safety notifications.
The player can be powered by an AC adapter, a car (cigarette‑lighter) adapter, or its rechargeable battery pack.
