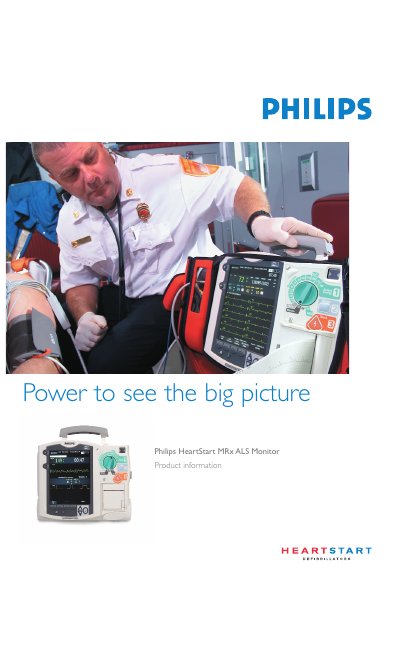

Philips HeartStart MRx ALS Monitor is a compact and easy-to-operate cardiac monitor with capabilities for rapid intervention, thorough care, and positive patient outcomes. It features monitoring, therapy, and data configuration, providing a wealth of measurements and waveform information that can be customized to user preferences.
The HeartStart MRx ALS Monitor is a compact, lightweight defibrillator/monitor that provides ECG, SpO₂, non‑invasive blood pressure, capnography and optional 12‑lead ECG. It includes SMART Biphasic waveform therapy, Q‑CPR measurement and feedback, and a range of configurable displays and alarms.
The manual covers device setup, self‑tests, data collection, battery management, accessories, and warranty/service options, with detailed technical specifications for dimensions, weight, display, battery capacity, operating environment and data storage.
| Dimensions (without external paddles) | 12.4 x 7.7 x 11.7 in (313 x 195 x 295 mm) |
|---|---|
| Weight (base unit with one battery) | 13.2 lbs (6 kg) |
| Display | 8.4‑inch diagonal (128 mm × 171 mm) TFT color LCD, 480 × 640 pixels |
| Battery capacity | 6.3 Ah, 14.8 V rechargeable lithium‑ion |
| Operating temperature range | 32 °F – 113 °F (0 °C – 45 °C) |
| Data storage capacity | 8 hours of continuous ECG waveforms + 50 12‑lead ECG reports |
The base unit with one battery weighs 13.2 lb (6 kg).
Yes, it can store up to 8 hours of continuous ECG waveforms and up to 50 12‑lead ECG reports on an internal memory or optional CompactFlash card.
