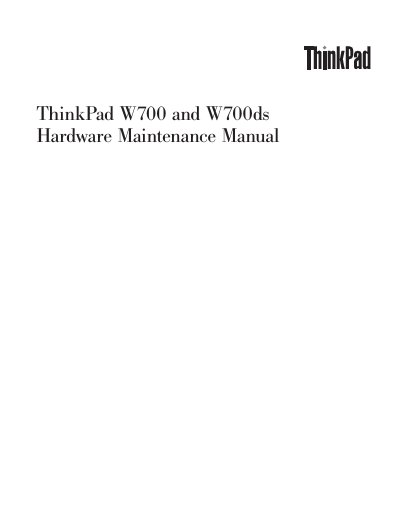

ThinkPad W700 and W700ds Hardware Maintenance Manual. This manual provides information about repairing ThinkPad W700 and W700ds notebook computers.
This manual offers detailed service information for the ThinkPad W700 and W700ds, including safety instructions, grounding requirements, and FRU replacement strategies. Technicians are instructed to follow general safety rules, use antistatic precautions, and disconnect power before any work.
The document also contains the full specifications, part numbers, and diagrams for components such as processors, memory, displays, storage, and power accessories, enabling accurate troubleshooting and repair of these workstation‑class laptops.
| Processor options | Intel Core 2 Duo T9400, T9550, T9600, T9800; Intel Core 2 Quad Q9000, Q9100; Intel Core 2 Extreme X9100, QX9300 |
|---|---|
| Standard memory | 1‑GB DDR3‑1067 SDRAM SO‑DIMM (PC3‑8500) per module, up to 8 GB total |
| Display | 17.0‑inch WSXGA+ (1440 × 900) TFT LCD; optional 17.0‑inch WUXGA (1920 × 1200) TFT LCD |
| Hard disk drive | 250 GB, 5400 rpm, 9.5 mm SATA (other capacities listed) |
| Battery | Li‑ion 9‑cell, 2.6 Ah |
| AC adapter | 170‑watt type |
Technicians should follow the general safety rules, wear safety glasses, use antistatic measures, and ensure the power is disconnected before any work.
Supported processors include Intel Core 2 Duo T9400, T9550, T9600, T9800, Intel Core 2 Quad Q9000, Q9100, and Intel Core 2 Extreme X9100 and QX9300.
The laptops can be configured with up to 8 GB of DDR3‑1067 SDRAM using one or two memory modules.
