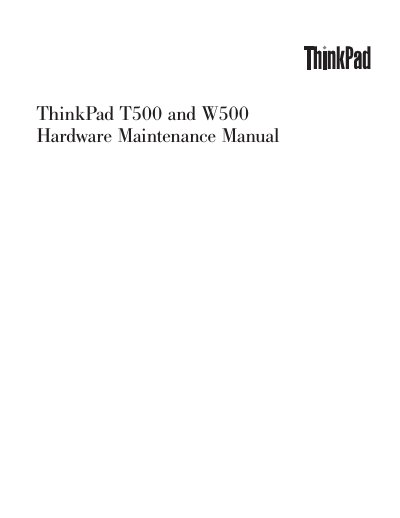

This manual introduces the hardware maintenance information for ThinkPad T500 and W500
The Lenovo ThinkPad T500/W500 Hardware Maintenance Manual provides detailed service information for trained technicians. It covers safety procedures, electrical precautions, FRU replacement strategies, and diagnostic tools needed to maintain these laptops.
The manual also includes complete hardware specifications, part numbers, and diagrams for components such as processors, displays, memory, storage, and batteries, enabling accurate troubleshooting and repair. This manual is written in Chinese.
| Processor | Intel® Core™ 2 Duo P7370 (2.0 GHz), 3‑MB L2 cache |
|---|---|
| Display | 15.4‑inch, WXGA (1280 × 800) TFT LCD |
| Standard memory | 512 MB DDR3‑1067 SDRAM SO‑DIMM (PC3‑8500) × 1 |
| Hard disk drive | 80 GB, 5400 rpm, 9.5 mm SATA |
| Battery | Li‑ion 6‑cell, 2.6 Ah |
| AC adapter | 65‑watt or 90‑watt type |
Do not attempt to lift any object that weighs more than 16 kg (35 lb).
The manual lists Windows XP Professional and several editions of Windows Vista (Home Basic, Home Premium, Business, Business 64‑bit, and Ultimate).
Both 65‑watt and 90‑watt AC adapters are supported.
