This document is a hardware maintenance manual for ThinkPad X30, X31, X32 and related products. It provides important service information, strategies for replacing components, and important information regarding RoHS compliance.
This Service Manual contains detailed service and reference information for the ThinkPad X30, X31, and X32 notebook series, as well as the ThinkPad Dock and Dock II. It includes safety guidelines, FRU (Field Replaceable Unit) identification, part numbers, and troubleshooting instructions intended for trained service personnel.
The manual is organized into sections covering safety notices, FRU replacement strategies, product specifications, status indicators, diagnostic error codes, and a comprehensive parts list with part numbers for each component. It also provides guidance on using error messages, performing hardware tests, and accessing Lenovo support resources.
| X30 processor options | Mobile Intel® Pentium® III 1.06 GHz, L2 512 KB cache |
|---|---|
| X31 processor options | Intel Pentium M 1.3 GHz – 1.7 GHz, L2 1 MB cache |
| X32 processor options | Intel Pentium M 1.6 GHz – 2.0 GHz, L2 2 MB cache |

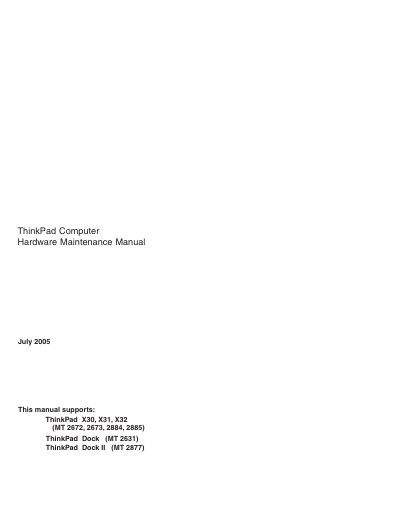

The manual supports ThinkPad X30, X31, X32, as well as ThinkPad Dock (MT 2631) and ThinkPad Dock II (MT 2877).
