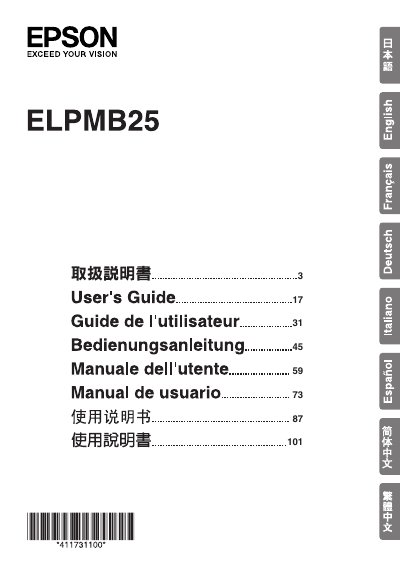

This document is the instruction manual for the ceiling installation bracket, which introduces the installation method, angle adjustment, and fall prevention line installation
This guide explains the safety measures required when installing the ELPMB25 ceiling mount, including proper strength assessment, avoiding adhesives, and ensuring the mount is installed by qualified personnel. It also lists the included hardware and the tools needed for the installation.
Detailed installation procedures cover removing the provisional brackets, positioning the ceiling bracket, drilling anchor holes, securing the mount with M12 anchor bolts and M6 screws, and adjusting the projection angle up to 5°. Additional notes address concrete installations, cable management, and environmental considerations such as avoiding direct sunlight on the projector's remote sensor. This manual is written in Japanese.
| Anchor bolts | M12, 4 pcs |
|---|---|
| Mounting screws | M6 x 18, 4 pcs |
| Mounting plate width | 160 mm |
Four M12 anchor bolts are required for concrete installations.
