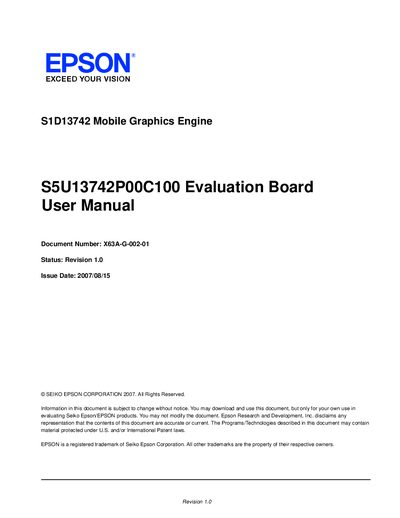

S5U13742P00C100 Evaluation Board User Manual, Introduces the features and characteristics of this product.
This manual describes the Epson 5U13742P00C100 Evaluation Board, an evaluation platform for the 1D13742 Mobile Graphics Engine. It explains how to install the board, configure its DIP switches and jumpers, and connect it to host systems via the USB Adapter board.
The board includes a 121‑pin FCBGA graphics engine, multiple headers for host bus, USB adapter, LCD panels and GPIO, on‑board voltage regulators, a 4 MHz oscillator, and optional clock socket. Detailed parts lists, schematics, and board layout diagrams are provided for developers.
| Graphics Engine Package | 121‑pin FCBGA |
|---|---|
| Input Power | 3.3 V |
| On‑board Regulator Output | 1.5 V |
| Adjustable Regulator Output | 6‑24 V, 40 mA max |
| Oscillator | 4 MHz |
| Optional Clock Socket | 14‑pin DIP socket |
The board uses DIP switch SW1 to set the three configuration inputs CNF[2:0]; the manual provides a table showing the power‑on/reset options for each switch position.
The board requires a 3.3 V input and provides on‑board regulators delivering 1.5 V and an adjustable 6‑24 V output up to 40 mA.
Connect the board to the SSU13U00P00C100 USB Adapter board, then use a USB 2.0 connection to a laptop or desktop computer.
