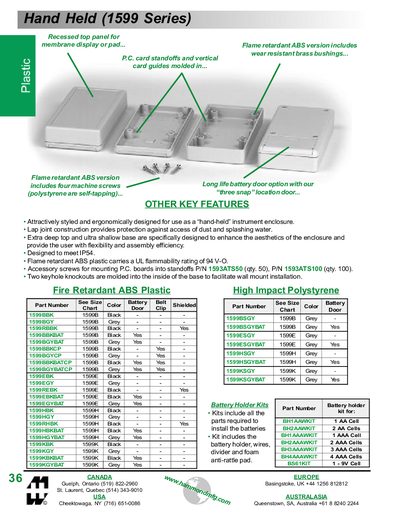

This document mainly introduces the characteristics of Hammond Hand Held (1599 Series) products, including appearance design, dust and water resistance, depth and base
The Hand Held (1599 Series) enclosure is attractively styled and ergonomically designed for hand‑held use. It features lap‑joint construction for dust and water protection, IP54 rating, and flame‑retardant ABS plastic with a UL flammability rating. The design includes extra‑deep top and ultra‑shallow base for flexibility and assembly efficiency, along with long‑life battery door options and wear‑resistant brass bushings.
A range of accessories is listed for the 1599 series, including nylon screws, replacement machine screws for ABS and polystyrene versions, battery holder kits for various cell types, belt or pocket clips, and mounting screws for PC boards. Part numbers and quantities for each accessory are provided, along with size charts and dimensions for each model variant.
| IP rating | IP54 |
|---|---|
| Material | Flame retardant ABS plastic |
| Alternative material | High Impact Polystyrene |
| 1599B dimensions (inches) | 5.12 x 2.56 x 0.97 |
It is designed to meet IP54.
The enclosure is made of flame‑retardant ABS plastic with a UL flammability rating, and an alternative high‑impact polystyrene version is also available.
Accessories include nylon screws, replacement ABS and polystyrene machine screws, battery holder kits for AA, AAA, and 9V cells, belt or pocket clips, and PC board mounting screws.
