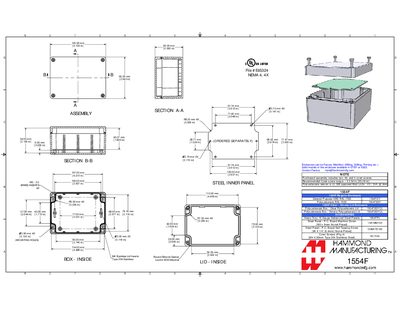

1554F Clear / Smoke Lid Enclosure
The 1554F is a general‑purpose enclosure offered in ABS (RAL‑035) and polycarbonate (RAL‑7035) versions. It is rated NEMA 4, 4X and UL 508 approved, making it suitable for a wide range of industrial applications. Customization such as milling, drilling, or printing can be performed by the factory.
Key dimensions are listed (e.g., 120 mm × 80 mm × 91.74 mm) and ordering information includes cover screw torque (2.5 in‑lb) and recommended hardware. Solid 3‑D models are available in STEP or IGES format, and the factory can be contacted via [email protected] for further assistance.
| Length | 120.00 mm |
|---|---|
| Height | 91.74 mm |
| Material (ABS) | General Purpose ABS RAL‑035 |
| Material (Polycarbonate) | Polycarbonate RAL‑7035 |
| NEMA Rating | NEMA 4, 4X |
| UL Approval | UL 508 |
| Cover Screw Torque | 2.5 in‑lb |
| Cover Screw Size | M3 × 8 mm Nickel Plated |
The recommended cover screw torque is 2.5 in‑lb.
It is rated NEMA 4, 4X.
Yes, solid models are available in STEP or IGES format.
