1554R is a general purpose ABS enclosure. It is available in a clear or smoke polycarbonate lid. It is UL 508 approved and meets UL94-V0 / 5VA @ 3mm.
The Hammond 1554R is a box‑inside enclosure offered in General Purpose ABS (RAL‑7035) and a UL 508‑approved polycarbonate version. It can be factory‑modified with milling, drilling, or printing as required.

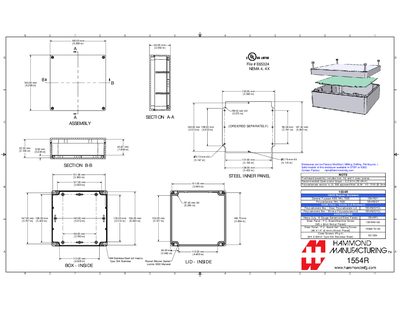

The enclosure dimensions are provided in millimetres and inches, with detailed hardware listings such as cover screws, nickel‑plated M3×8 mm screws, and Type 304 stainless‑steel M4×20 mm screws. 3‑D models are available in STEP or IGES format, and the recommended cover‑screw torque is 2.5 lb‑in (30 N‑mm).
| Overall length | 180.00 mm |
|---|---|
| Material (ABS version) | General Purpose ABS RAL‑7035 |
| Material (Polycarbonate version) | UL 508 approved |
| Cover screw torque | 2.5 lb‑in (30 N‑mm) |
| Screw type (M3) | M3 x 8 mm Nickel Plated |
| Screw type (M4) | M4 x 20 mm Type 304 Stainless Steel |
| Gasket type | Type 304 Stainless Poured Silicone Gasket |
| 3‑D model formats | STEP or IGES |
The recommended cover screw torque is 2.5 lb‑in (30 N‑mm).
Solid models are available in STEP or IGES format; contact the factory at [email protected].
