This document describes a product called BOX, which is a general-purpose ABS material enclosure with steel panels and polycarbonate panels. The product features durability and waterproof performance.

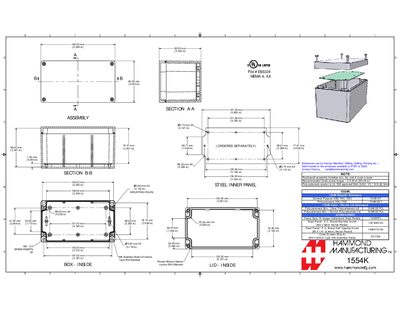

This document lists the physical dimensions, material constructions, and hardware specifications for the Hammond 1554K enclosure series. It includes overall size, section measurements, and recommended torque for cover screws.
The sheet also notes available material finishes such as ABS, polycarbonate, and steel, and provides ordering information including part numbers, screw types, and CAD file availability (STEP or IGES). Contact information for the factory is included for further inquiries.
| Overall size | 160.00 mm × 90.00 mm |
|---|---|
| Section A‑A dimension | 147.32 mm |
| Cover screw torque | 6.5 lbf‑in (30 N·cm) |
| Inner panel material | Steel |
| Polycarbonate version compliance | UL 508 approved |
The enclosure measures 160.00 mm (6.299 in) in length and 90.00 mm (3.543 in) in width.
The enclosure is offered in ABS, polycarbonate (UL 508 approved), and heavy‑duty steel constructions.
Solid models are available in STEP or IGES format; contact the factory at [email protected].
