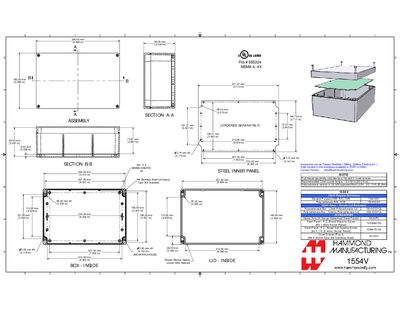

1554V Clear / Smoke Lid Enclosure. Recommended Cover screw torque -- 2.5 lbf-in (30 cN-m). Purchased assembly includes box, lid, and 4 cover screws. Polycarbonate version is UL 508 approved. Matl UL94 - V0 / 5VA @ 3mm.
The Hammond 1554V enclosure is offered in several material options, including General Purpose ABS, polycarbonate, and 304 stainless steel. The sheet provides precise dimensions, mounting hole locations, and recommended fasteners for assembly.
Key features include UL 808 approval for the polycarbonate version, UL94 V‑0 rating for certain plastics, and optional stainless‑steel lid inserts. All components such as screws and gaskets are listed with part numbers and torque specifications.
| Mounting hole spacing | 215.00 mm |
|---|
Cover screws should be torqued to 2‑5 in‑lb.
