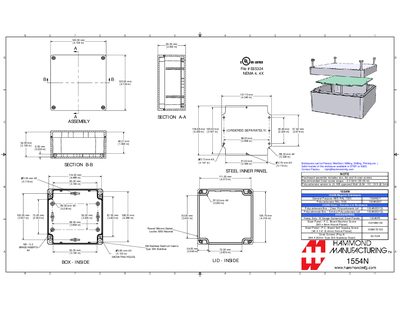

1554N is a general model of 1554N series products. The series includes ABS, polycarbonate and other materials. There are transparent and smoke lids. It has a steel inner panel and comes with 4 cover screws. It is recommended that the cover screw torque be 2.5 lbf-in (30 cN-m).
The Hammond 1554N is a NEMA 4, 4X rated enclosure offered in several material options, including General Purpose ABS, UL‑508 approved polycarbonate, and heavy‑duty 18‑gauge galvanized steel panels. Detailed dimensions for each configuration are provided, such as 120.00 mm (4.724 in) width and 60.00 mm (2.362 in) depth.
Ordering information includes part numbers, cover screw torque specifications (2.5 N·m), and optional accessories like stainless‑steel lid inserts. Solid 3‑D models of the enclosure are available for download in STEP or IGES format, and the enclosure can be factory‑modified for milling, drilling, or printing as needed.
| Width | 120.00 mm (4.724 in) |
|---|---|
| NEMA Rating | NEMA 4, 4X |
| Material (ABS) | General Purpose ABS RAL‑7035 |
| Material (Polycarbonate) | UL 508 approved polycarbonate |
| Material (Steel) | Heavy Duty 18 Gauge Galvanized Steel Panels |
| Cover Screw Torque | 2.5 N·m |
The 1554N enclosure is rated NEMA 4, 4X.
It is offered in General Purpose ABS, UL‑508 approved polycarbonate, and heavy‑duty 18‑gauge galvanized steel panels.
The recommended cover screw torque is 2.5 N·m.
Yes, solid models are available for download in STEP or IGES format.
