This manual provides detailed instructions on the structure and maintenance of the Philips DVP720SA/00/02/05/69/75 DVD player.

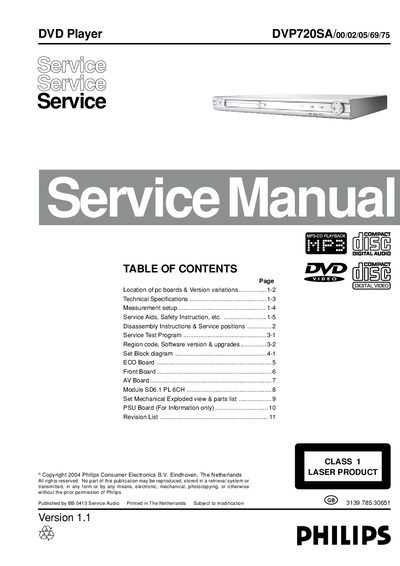

This service manual covers the Philips DVP720SA DVD player. It includes location diagrams of all PC boards, version variations, detailed technical specifications, measurement setup instructions, and a list of service tools and test discs. Safety sections describe ESD protection, laser hazards and required precautions for repair work.
The document also provides step‑by‑step dismantling instructions, service position references for each board, exploded mechanical views, parts lists and a full PSU board circuit diagram. Revision history and version information are listed at the end.
| Mains voltage | 120V (region /17) / 220‑240V (regions /00/02/05) / 110‑127V/220‑240V (regions /69/75) |
|---|---|
| Standby power consumption | < 0.3W (regions /00/02/05) / < 1W (regions /69/75) |
| Dimensions (centre unit) | 435 x 46 x 310 mm |
| Audio output level (1 kHz) | 2 Vrms + 1.5 dB |
| Frequency response (audio) | 20 Hz – 20 kHz |
| CVBS video output level | 1.0 V |
The standby power consumption is less than 0.3 W for regions /00/02/05 and less than 1 W for regions /69/75.
