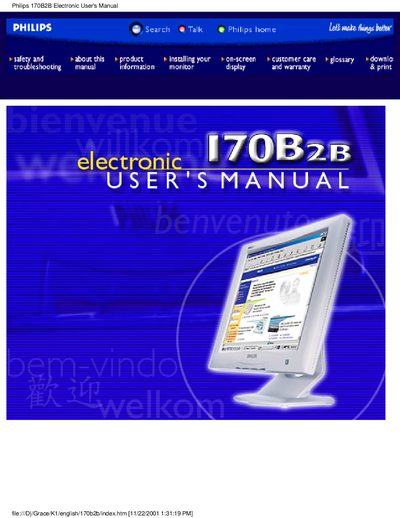

The document is about the Philips 170B2B electronic user's manual. It includes safety precautions and maintenance, installation locations, FAQs, troubleshooting, regulatory information, and other related information.
This electronic user’s guide covers everything you need to know about the Philips 170B2B 17‑inch LCD monitor, including safety precautions, installation locations, and how to adjust on‑screen settings. It also contains detailed product information, technical specifications, and power‑saving features.
The manual includes consumer service contacts for various regions and a warranty overview, helping users quickly find support and maintenance details.
| Screen size | 17" (43.2 cm) diagonal |
|---|---|
| Pixel pitch | 0.264 × 0.264 mm |
| Resolution | 1280 × 1024 pixels |
| Contrast ratio | 400 (typ.) |
| Brightness | 250 cd/m² (typ.) |
| Viewing angle | Upper/Lower/Left/Right >80° (typ.) |
| Response time | <40 ms (typ.) |
| Vertical refresh rate | 56 – 76 Hz |
| Horizontal frequency | 380 kHz – 82 kHz |
| Video dot rate | 135 MHz |
| Video input impedance | 75 Ω |
| Sync input impedance | 2 kΩ |
| Input signal level | 0.7 Vpp |
The monitor should be used in temperatures from 5 °C to 35 °C and humidity from 20 % to 80 % RH.
It provides a triple input configuration with two connectors: a D‑Sub (VGA) analog connector and a DVI‑I connector that accepts both digital and analog signals.
The monitor supports up to 1280 × 1024 at 75 Hz, with a recommended 1280 × 1024 at 60 Hz.
